AVDEL艾维德快速铆钉枪7539不同应用平台中的使用

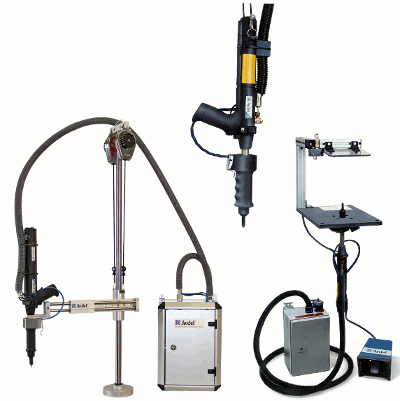

AVDEL快速铆钉枪7539系列可以铆接所有AVDEL快速铆钉且设计很有特色.快速装配或在小批量生产中让其更具有成本效益,操作简单,高机动性和易集成到生产过程中是其主要特点,所以没有必要花时间对操作员培训.液压铆接能够提供流畅且无冲击震动的铆接作业,是在敏感部件进行铆接作业的理想选择。所有AVDEL快速铆钉枪工具需要压缩气源供应,各自的枪嘴组件要单独定购。
AVDEL快速铆钉枪07539-03000型-竖直型工作台这种工具适用于需要枪嘴朝下的铆接作业环境.优点：由于工作台的线性控制性和耐疲劳操作性俱佳，所以很容易调整工件,主要用于坐在工作区进行作业。
|
|
||||||||
|
|
|||||||||
AVDEL快速铆钉枪07539-03001 -枪头朝上式工作平台The 07539-03001 is integrated into existing assembly workstations. The tool is especially suitable for components with “Bottom-Up” riveting requirements. The components are positioned on the previously fed rivet. Jig points required for the components can be designed more easily. |
|
||||||||
|
|
|||||||||
AVDEL快速铆钉枪 07539-03005 -悬挂式For different riveting directions on the same component the tool is mounted via a balancer (balancer part-no. 78230-00005 has to be ordered separately). You can carry out up to 60 riveting processes per minute. An extension with a tool stand is optional. The tool weighs about 1.5 kg. |
|
||||||||
